Ask Ethan: What Is The Fine Structure Constant And Why Does It Matter?

Forget the speed of light or the electron’s charge. This is the physical constant that really matters.

Why is our Universe the way it is, and not some other way? There are only three things that make it so: the laws of nature themselves, the fundamental constants governing reality, and the initial conditions our Universe was born with. If the fundamental constants had substantially different values, it would be impossible to form even simple structures like atoms, molecules, planets, or stars. Yet, in our Universe, the constants have the explicit values they do, and that specific combination yields the life-friendly cosmos we inhabit. One of those fundamental constants is known as the fine structure constant, and Sandra Rothfork wants to know what that’s all about, asking:

Can you please explain the fine structure constant as simply as possible?

Let’s start at the beginning: with the simple building blocks of matter that make up the Universe.

The proton’s structure, modeled along with its attendant fields, show how even though it’s made out of point-like quarks and gluons, it has a finite, substantial size which arises from the interplay of the quantum forces and fields inside it. The proton, itself, is a composite, not fundamental, quantum particle. The quarks and gluons inside it, though, along with the electrons that orbit atomic nuclei, are believed to be truly fundamental and indivisible. (BROOKHAVEN NATIONAL LABORATORY)

Our Universe, if we break it down into its smallest constituent parts, is made up of the particles of the Standard Model. Quarks and gluons, two types of these particles, bind together to form bound states like the proton and neutron, which themselves bind together into atomic nuclei. Electrons, another type of fundamental particle, are the lightest of the charged leptons. When electrons and atomic nuclei bind together, they form atoms: the building blocks of the normal matter that makes up everything in our day-to-day experience.

Before humans even recognized how atoms were structured, we had determined many of their properties. In the 19th century, we discovered that the electric charge of the nucleus determined an atom’s chemical properties, and found out that every atom had its own unique spectrum of lines that it could emit and absorb. Experimentally, the evidence for a discrete, quantum Universe was known long before theorists put it all together.

The visible light spectrum of the Sun, which helps us understand not only its temperature and ionization, but the abundances of the elements present. The long, thick lines are hydrogen and helium, but every other line is from a heavy element. Many of the absorption lines shown here are very close to one another, showing evidence of fine structure, which can split two degenerate energy levels into closely-spaced but distinct ones. (NIGEL SHARP, NOAO / NATIONAL SOLAR OBSERVATORY AT KITT PEAK / AURA / NSF)

In 1912, Niels Bohr proposed his now-famous model of the atom, where the electrons orbited around the atomic nucleus like planets orbited the Sun. The big difference between Bohr’s model and our Solar System, though, was that there were only certain particular states that were allowed for the atom, whereas planets could orbit with any combination of speed and radius that led to a stable orbit.

Bohr recognized that the electron and nucleus were both very small, had opposite charges, and knew that the nucleus had practically all of the mass. His groundbreaking contribution was understanding that electrons can only occupy certain energy levels, which he termed “atomic orbitals.” The electron can orbit the nucleus only with particular properties, leading to the absorption and emission lines characteristic to each individual atom.

When free electrons recombine with hydrogen nuclei, the electrons cascade down the energy levels, emitting photons as they go. In order for stable, neutral atoms to form in the early Universe, they have to reach the ground state without producing a potentially ionizing, ultraviolet photon. The Bohr model of the atom provides the course (or rough, or gross) structure of the energy levels, but this already was insufficient to describe what had been seen decades prior. (BRIGHTERORANGE & ENOCH LAU/WIKIMDIA COMMONS)

This model, as brilliant and clever as it is, immediately failed to reproduce the decades-old experimental results from the 19th century. All the way back in 1887, Michelson and Morely had determined the atomic emission and absorption properties of hydrogen, and they didn’t quite match the predictions of the Bohr atom.

The same scientists who determined that there was no difference in the speed of light whether it moved with, against, or perpendicular to the motion of the Earth had also measured the spectral lines of hydrogen more precisely than anyone ever before. While the Bohr model came close, Michelson and Morely’s results demonstrated small shifts and extra energy states that departed slightly but significantly from Bohr’s predictions. In particular, there were some energy levels that appeared to split into two, whereas Bohr’s model only predicted one.

In the Bohr model of the hydrogen atom, only the orbiting angular momentum of the point-like electron contributes to the energy levels. Adding in relativistic effects and spin effects not only causes a shift in these energy levels, but causes degenerate levels to split into multiple states, revealing the fine structure of matter atop the coarse structure predicted by Bohr. (RÉGIS LACHAUME AND PIETER KUIPER / PUBLIC DOMAIN)

Those additional energy levels, which were very close to one another and also close to Bohr’s predictions, were the first evidence of what we now call the fine structure of atoms. Bohr’s model, which simplistically modeled electrons as charged, spinless particles orbiting the nucleus at speeds much lower than the speed of light, successfully explained the coarse structure of atoms, but not this additional fine structure.

That would require another advance, which came in 1916 when physicist Arnold Sommerfeld had a realization. If you modeled a hydrogen atom as Bohr did, but took the ratio of a ground-state electron’s velocity and compared it to the speed of light, you’d get a very specific value, which Sommerfeld called α: the fine structure constant. This constant, once you folded into Bohr’s equations properly, was able to precisely account for the energy difference between the coarse and fine structure predictions.

A supercooled deuterium source, as shown here, doesn’t simply show discrete levels, but fringes that go atop of the standard constructive/destructive interference pattern. This additional fringe effect is a consequence of the fine structure of matter. (JOHNWALTON / WIKIMEDIA COMMONS)

In terms of the other constants known at the time, α = e²/(4πε_0)ħc, where:

e is the electron’s charge,
ε_0 is the electromagnetic constant for the permittivity of free space,
ħ is Planck’s constant,
and c is the speed of light.

Unlike these other constants, which have units associated with them, α is a truly dimensionless constant, which means it is simply a pure number, with no units associated with it at all. While the speed of light might be different if you measure it in meters per second, feet per year, miles per hour, or any other unit, α always has the same value. For this reason, it’s considered to be one of the fundamental constants that describes our Universe.

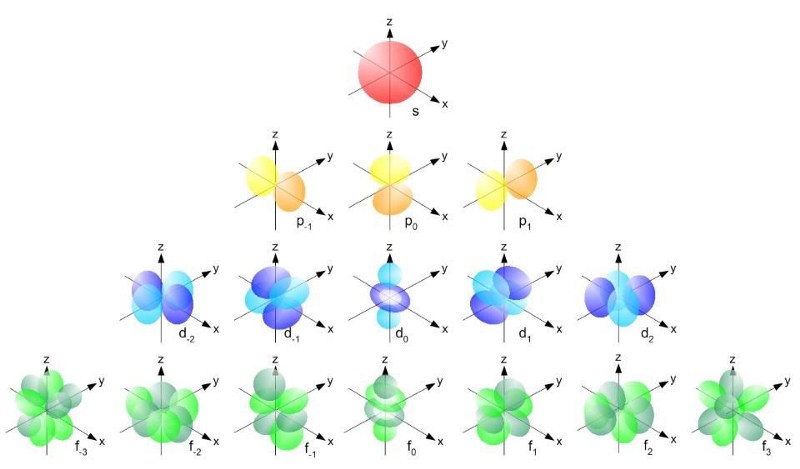

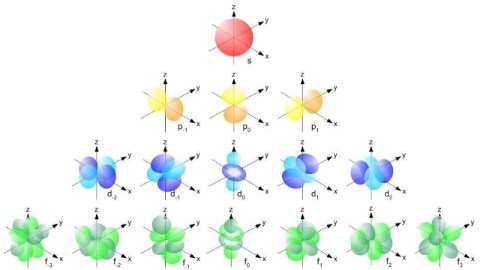

The energy levels and electron wavefunctions that correspond to different states within a hydrogen atom, although the configurations are extremely similar for all atoms. The energy levels are quantized in multiples of Planck’s constant, but the sizes of the orbitals and atoms are determined by the ground-state energy and the electron’s mass. Additional effects may be subtle, but shift the energy levels in measurable, quantifiable fashions. (POORLENO OF WIKIMEDIA COMMONS)

An atom’s energy levels cannot be accounted for properly without including these fine structure effects, a fact which resurfaced a decade after Bohr when the Schrödinger equation came onto the scene. Just as the Bohr model failed to reproduce the hydrogen atom’s energy levels properly, so did the Schrödinger equation. It was quickly discovered that there were three reasons for this.

The Schrödinger equation is fundamentally non-relativistic, but electrons and other quantum particles can move close to the speed of light, and that effect must be included.
Electrons don’t simply orbit atoms, but they also have an intrinsic angular momentum inherent to them: spin, with a value of ħ/2, that can either be aligned or anti-aligned with the rest of the atom’s angular momentum.
Electrons also exhibit an inherent set of quantum fluctuations to their motion, known as zitterbewegung; this also contributes to the fine structure of atoms.

When you include all of these effects, you can successfully reproduce both the gross and fine structure of matter.

In the absence of a magnetic field, the energy levels of various states within an atomic orbital are identical (L). If a magnetic field is applied, however (R), the states split according to the Zeeman effect. Here we see the Zeeman splitting of a P-S doublet transition. Other types of splitting occur owing to spin-orbit interactions, relativistic effects, and interactions with the nuclear spin, leading to the fine and hyperfine structure of matter. (EVGENY AT ENGLISH WIKIPEDIA)

The reason these corrections are so small is because the value of the fine structure constant, α, is also very small. According to our best modern measurements, the value of α = 0.007297352569, where only the last digit is uncertain. This is very close to being an exact number: α = 1/137. It was once considered possible that this exact figure could be accounted for somehow, but better theoretical and experimental research has demonstrated that the relation is inexact, and that α = 1/137.0359991, where again only the last digit is uncertain.

The 21-centimeter hydrogen line comes about when a hydrogen atom containing a proton/electron combination with aligned spins (top) flips to have anti-aligned spins (bottom), emitting one particular photon of a very characteristic wavelength. The opposite-spin configuration in the n=1 energy level represents the ground state of hydrogen, but its zero-point-energy is a finite, non-zero value. This transition is part of the hyperfine structure of matter, going even beyond the fine structure we more commonly experience. (TILTEC OF WIKIMEDIA COMMONS)

Even including all of these effects, though, doesn’t get you everything about atoms. Not only is there the coarse structure (from electrons orbiting a nucleus) and fine structure (from relativistic effects, the electron’s spin, and the electron’s quantum fluctuations), but there’s hyperfine structure: the interaction of the electron with the nuclear spin. The spin-flip transition of the hydrogen atom, for example, is the narrowest spectral line known in physics, and it’s due to this hyperfine effect that goes beyond even fine structure.

The light from ultra-distant quasars provide cosmic laboratories for measuring not only the gas clouds they encounter along the way, but for the intergalactic medium that contains warm-and-hot plasmas outside of clusters, galaxies, and filaments. Because the exact properties of the emission or absorption lines are dependent on the fine structure constant, this is one of the top methods for probing the Universe for time or spatial variations in the fine structure constant. (ED JANSSEN, ESO)

But the fine structure constant, α, is of tremendous interest to physics. Some have investigated whether it might not be perfectly constant. Various measurements have indicated, at various points in our scientific history, that α might either vary with time or from location to location in the Universe. Measurements of the spectral lines of hydrogen and deuterium, in some cases, have indicated that perhaps α changes by ~0.0001% through space or time.

These initial results, however, have failed to hold up to independent verification, and are treated as dubious by the greater physics community. If we did ever robustly observe such variation, it would teach us that something that we observe to be unchanging in the Universe — like the electron charge, Planck’s constant, or the speed of light — might actually not be a constant through space or time.

A Feynman diagram representing electron-electron scattering, which requires summing over all the possible histories of the particle-particle interactions. The idea that a positron is an electron moving backwards in time grew out of the collaboration between Feynman and Wheeler, but the strength of the scattering interaction is energy-dependent and is governed by the fine structure constant describing the electromagnetic interactions. (DMITRI FEDOROV)

A different type of variation, though, has actually been reproduced: α changes as a function of the energy conditions under which you perform your experiments.

Let’s think about why this must be so by imagining a different way of looking at the fine structure of the Universe: take two electrons and hold them a specific distance apart from one another. The fine structure constant, α, can be thought of as the ratio between the energy needed to overcome the electrostatic repulsion driving these electrons apart and the energy of a single photon whose wavelength is 2π multiplied by the separation between those electrons.

In a quantum Universe, though, there are always particle-antiparticle pairs (or quantum fluctuations) that populate even completely empty space. At higher energies, this changes the strength of the electrostatic repulsion between two electrons.

A visualization of QCD illustrates how particle/antiparticle pairs pop out of the quantum vacuum for very small amounts of time as a consequence of Heisenberg uncertainty. The quantum vacuum is interesting because it demands that empty space itself isn’t so empty, but is filled with all the particles, antiparticles and fields in various states that are demanded by the quantum field theory that describes our Universe. (DEREK B. LEINWEBER)

The reason why is actually straightforward: the lightest charged particles in the Standard Model are electrons and positrons, and at low energies, the virtual contributions from electron-positron pairs are the only quantum effects that matter in terms of the strength of the electrostatic force. But at higher energies, it not only becomes easier to make electron-positron pairs, giving you a larger contribution, but you start getting additional contributions from heavier particle-antiparticle combinations.

At the (mundane) low energies we have in our Universe today, α is approximately 1/137. But at the electroweak scale, where you find the heaviest particles like the W, Z, Higgs boson and top quark, α is somewhat greater: more like 1/128. Effectively, owing to these quantum contributions, it’s as though the electron’s charge increases in strength.

Through a herculean effort on the part of theoretical physicists, the muon magnetic moment has been calculated up to five-loop order. The theoretical uncertainties are now at the level of just one part in two billion. This is a tremendous achievement that can only be made in the context of quantum field theory, and is heavily reliant on the fine structure constant and its applications. (2012 AMERICAN PHYSICAL SOCIETY)

The fine structure constant, α, also plays a major role in one of the most important experiments going on in modern physics today: the effort to measure the intrinsic magnetic moment of fundamental particles. For a point particle like the electron or muon, there are only a few things that determine its magnetic moment:

the electric charge of the particle (which it’s directly proportional to),
the spin of the particle (which it’s directly proportional to),
the mass of the particle (which it’s inversely proportional to),
and a constant, known as g, which is a purely quantum mechanical effect.

While the first three are exquisitely known, g is only known to a little better than one part per billion. That might sound like a supremely good measurement, but we’re attempting to measure it to an even greater precision for a very good reason.

This is the headstone of Julian Seymour Schwinger at Mt Auburn Cemetery in Cambridge, MA. The formula is for the correction to “g/2” as he first calculated in 1948. He regarded it as his finest result. (JACOB BOURJAILY / WIKIMEDIA COMMONS)

Back in 1930, we thought that g would be 2, exactly, as derived by Dirac. But that ignores the quantum exchange of particles (or the contribution of loop diagrams), which only begins to show up in quantum field theory. The first-order correction was derived by Julian Schwinger in 1948, who states that g = 2 + α/π. As of today, we’ve computed all the contributions to 5th order, meaning we know all of the (α/π) terms, plus the (α/π)², (α/π)³, (α/π)⁴, and (α/π)⁵ terms.

We can measure g experimentally and calculate it theoretically, and what we find, very curiously, is that they don’t quite match. The differences between g from experiment and theory are very, very small: 0.0000000058, with a combined uncertainty of ±0.0000000016: a 3.5-sigma difference. If improved experimental and theoretical results reach the 5-sigma threshold, we just might be on the verge of new, beyond-the-Standard-Model physics.

The Muon g-2 electromagnet at Fermilab, ready to receive a beam of muon particles. This experiment began in 2017 and will take data for a total of 3 years, reducing the uncertainties significantly. While a total of 5-sigma significance may be reached, the theoretical calculations must account for every effect and interaction of matter that’s possible in order to ensure we’re measuring a robust difference between theory and experiment. (REIDAR HAHN / FERMILAB)

When we do our best to measure the Universe — to greater precisions, at higher energies, under extraordinary pressures, at lower temperatures, etc. — we often find details that are intricate, rich, and puzzling. It’s not the devil that’s in those details, though, but rather that’s where the deepest secrets of reality lie.

Travel the Universe with astrophysicist Ethan Siegel. Subscribers will get the newsletter every Saturday. All aboard!

The particles in our Universe aren’t just points that attract, repel, and bind together with one another; they interact through every subtle means that the laws of nature permit. As we reach greater precisions in our measurements, we start uncovering these subtle effects, including intricacies to the structure of matter that are easy to miss at low precisions. Fine structure is a vital part of that, but learning where even our best predictions of fine structure break down might be where the next great revolution in particle physics comes from. Doing the right experiment is the only way we’ll ever know.
