Ask Ethan: How Does Quantum Physics Make Levitation Possible?

With the right material at the right temperature and a magnetic track, physics allows you to never lose energy.

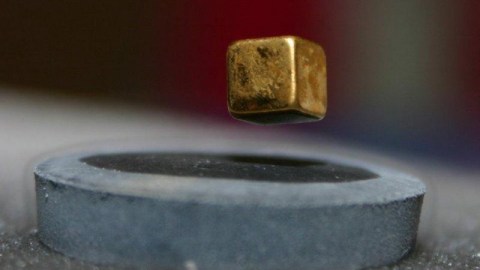

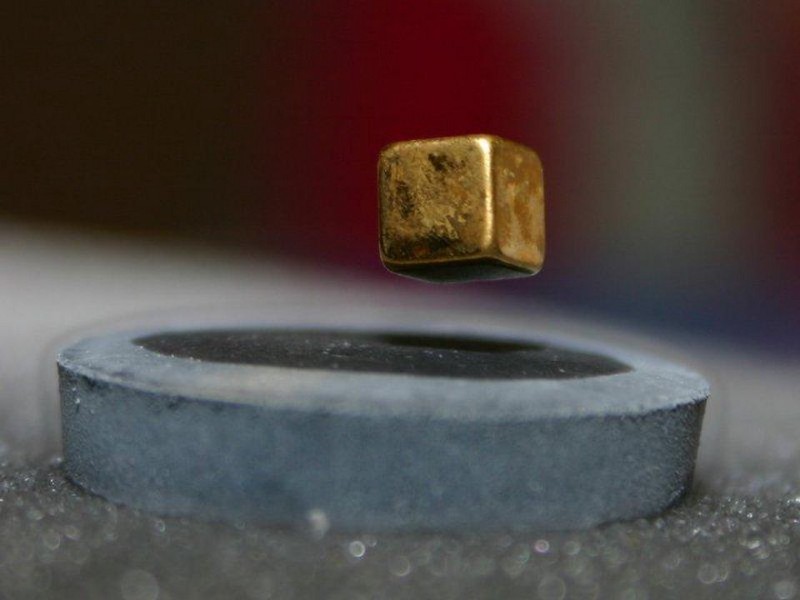

The idea of levitating off the ground has been a staple of science fiction dreams and human imagination since time immemorial. While we don’t have our hoverboards just yet, we do have the very real phenomenon of quantum levitation, which is almost as good. Under the right circumstances, a specially-made material can be cooled down to low temperatures and placed over a properly-configured magnet, and it will levitate there indefinitely. If you make a magnetic track, it will hover above or below it, and remain in motion perpetually. But how does that work? Patreon supporter Matt Roomel wants to know:

I am fascinated about superconductivity and its associated Meissner effect it creates. From what I understand, the Meissner effect (when the magnetic field is expelled and levitation occurs) is created when there is zero electrical resistance. […] Is zero electrical resistance free flowing electrons? […] What actually causes the expulsion of the magnetic field that creates levitation?

It’s the weirdest phenomenon you might ever see. Take a look at the demonstration yourself.

This video may already be 7 years old, but a number of things are clearly apparent:

  • the special material that levitates is extremely cold,
  • it can levitate either above or below a magnet: it gets pinned in a certain location,
  • and if you put it on a magnetic track, it doesn’t lose any speed over time.

This is really counterintuitive stuff, and isn’t the way that conventional, classical physics works. The permanent magnets you’re used to — which physicists call ferromagnets — could never levitate like this. Let’s take a look at how those work, and then see how this levitating phenomenon is different.

Magnetic field lines, as illustrated by a bar magnet: a magnetic dipole. These permanent magnets remain magnetized even after any external magnetic fields are taken away. (NEWTON HENRY BLACK, HARVEY N. DAVIS (1913) PRACTICAL PHYSICS)

Every material we know of is made up of atoms, which themselves may or may not be bound into molecules as part of the material’s internal structure. When you apply an external magnetic field to that material, those atoms-or-molecules get internally magnetized as well, and line up in the same direction as the external magnetic field.

The special property of a ferromagnet is that when you take the external magnetic field away, the internal magnetization remains. That’s what makes it a permanent magnet.

Although this is the type of magnet we’re most familiar with, nearly all materials are not ferromagnetic. Most materials, once you take the external field away, go back to being unmagnetized.

In the absence of a magnetic field, diamagnetic and paramagnetic materials remain non-magnetized on average, while ferromagnets will have a net magnetization. In the presence of an external field, diamagnetism will oppose the field’s direction, paramagnets and ferromagnets will align with the field’s direction. All materials exhibit some diamagnetism, but paramagnetic or ferromagnetic effects can swamp them easily. (LEONADRO RICOTTI / V. IACOVACCI ET AL., 2016, IN LAB-ON-A-CHIP FABRICATION AND APPLICATION)

So what happens inside these non-ferromagnetic materials when you apply an external magnetic field? They are either:

  • diamagnetic, where they magnetize anti-parallel to the external field,
  • or paramagnetic, where they magnetize parallel to the external field.

As it turns out, all materials exhibit diamagnetism, but some materials are either also paramagnetic or ferromagnetic. Diamagnetism is always weak, and so if your material is paramagnetic or ferromagnetic also, that effect can easily overwhelm the effect of diamagnetism.

So when you turn an external field on or off — which is the same thing, physically, as moving a material closer to or farther away from a permanent magnet — you change the magnetization inside the material. And there’s a physical law for what happens when you change the magnetic field inside a conducting material: Faraday’s Law of Induction.

One of Faraday’s 1831 experiments demonstrating induction. The liquid battery (right) sends an electric current through the small coil (A). When it is moved in or out of the large coil (B), its magnetic field induces a momentary voltage in the coil, which is detected by the galvanometer. By changing the magnetic field inside a conductor, you induce an electric current. (J. LAMBERT)

This law tells you that changing the field inside a conducting material causes it to generate an internal electric current. These little currents you generate are known as eddy currents, and they oppose the internal change in the magnetic field. At normal temperatures, these currents are extremely temporary, as they encounter resistance and decay away.

But these levitating materials we’re talking about? They’re made of specific materials that superconduct — or have their resistance drop to zero — at very low temperatures. In principle, any conducting material can be made to superconduct at low-enough temperatures, but what makes these particular superconductors interesting is that they can do it at 77 K: the temperature of liquid nitrogen! These relatively high critical temperatures makes it easy to create a low-cost superconductor.

Inside a material subjected to a changing external magnetic field, small electric currents known as eddy currents will develop. Normally, these eddy currents decay away rapidly. But if the material is superconducting, there is no resistance, and they will persist indefinitely. (CEDRAT TECHNOLOGIES)

That’s what happens. But there’s a reason why it happens. When you drop the temperature below a material’s critical temperature to turn it into a superconductor, it expels all the interior magnetic fields. This is what the Meissner effect actually is: the expulsion of interior magnetic fields. It basically turns a superconductor into a perfect diamagnet. Materials like aluminum, lead, or mercury behave exactly in this fashion when you cool them down below their critical temperatures.

At temperatures greater than the critical temperature of a superconductor, magnetic flux can freely pass through the conductor’s atoms. But below the critical superconducting temperature, all the flux gets expelled. This is the essence of the Meissner effect. (PIOTR JAWORSKI / WIKIMEDIA COMMONS)

Now, let’s go a step further. Instead of a uniform, perfect diamagnet, let’s imagine we have one with impurities inside of it. If you then cool your material down below the critical temperature and change the magnetic field inside of it, those interior magnetic fields still get expelled, but with an exception. Anywhere you have an impurity, the field remains. And because it cannot enter the expelled region, those field lined get pinnedinside the impurities.

In a Type II superconductor, impurities will develop above a certain magnetic field strength. The external magnetic field lines get pinned inside these impurities while they remain expelled outside of the impurities, creating a device capable of being levitated. (DEPARTMENT OF ENGINEERING PHYSICS, GITAM UNIVERSITY)

The impurities are the key to making this phenomenon of magnetic quantum levitation happen. The magnetic field gets expelled from the pure regions, which superconduct. But the field lines penetrate the impurities, which changes the field inside and creates those eddy currents.

And this is where the key lies: those eddy currents are moving electric charges, which encounter no resistance because the material is superconducting!

So instead of the currents decaying away, they’re sustained indefinitely, for as long as the material remains superconducting and at temperatures below the critical one.

This is an image, taken with scanning SQUID microscopy, of a very thin (200 nanometers) Yttrium-Barium-Copper-Oxide film subjected to liquid helium temperatures (4 K) and a significant magnetic field. The black spots are vortices created by the eddy currents around the impurities, while the blue/white regions are where all the magnetic flux has been expelled. (F. S. WELLS ET AL., 2015, SCIENTIFIC REPORTS VOLUME 5, ARTICLE NUMBER: 8677)

Overall, we have two separate things happening in the two different regions:

  1. In the pure, superconducting regions, the fields are expelled, giving you a perfect diamagnet.
  2. In the impure regions, magnetic field lines get concentrated and pinned, passing through them and causing sustained eddy currents.

It’s the currents generated by these impure regions that pin the superconductor in place, and create the levitating effect! Strong-enough external magnetic fields can destroy the effects, but there are two types of superconductors. In Type I superconductors, increasing the field strength destroys superconductivity everywhere. But in Type II superconductors, superconductivity only gets destroyed in the impure region. Because there are still regions where the field gets expelled, Type II superconductors can experience this levitation phenomenon.

A top view and side view of a Type II superconductor exposed to a strong magnetic field. Note how the side view demonstrates where the impurities arise and the flux is pinned, while the top view displays the generated eddy currents that do not decay on account of the superconductivity. (PHILIP HOFMANN)

So long as you have that external magnetic field, which is conventionally provided by a series of well-placed permanent magnets, your superconductor will continue to levitate. In practice, the only thing that brings the effect of magnetic, quantum levitation to an end is when the temperature of your material rises back up above that critical temperature.

This gives us an incredible holy grail to aim for: if we can create a material that superconducts at room temperature, then it will remain in this levitating state indefinitely. If we designed-and-built a magnetic track for it, made this impurity-laden superconductor, brought it to room temperature and started it in motion, it would remain in motion without bound. If we did this in a vacuum chamber, removing all air resistance, we would literally create a perpetual motion machine.

By creating a track where the outside magnetic rails point in one direction and the inside magnetic rails point in the other, a Type II superconducting object will levitate, remained pinned above-or-below the track, and will move along it. This could, in principle, be scaled up to allow resistance-free motion on large scales if room-temperature superconductors are achieved. (HENRY MÜHLPFORDT / TU DRESDEN)

What does all of this mean? That levitation is actually real, and has been achieved here on Earth. We could never do this without the quantum effects that enable superconductivity, but with them, it’s merely a question of designing the right experimental setup.

Travel the Universe with astrophysicist Ethan Siegel. Subscribers will get the newsletter every Saturday. All aboard!

It also gives us a tremendous sci-fi dream for the future. Imagine roads made out of these properly-configured magnetic tracks. Imagine pods, vehicles, or even shoes with the right type of room-temperature superconductors in them. And imagine coasting along at the same speed without ever needing to use a drop of fuel until it’s time to slow down.

If we can develop room-temperature, Type II superconductors, all of this could become a reality. Science has the potential to make it so.
